Eulex High Temperature Vertical Layer Capacitor

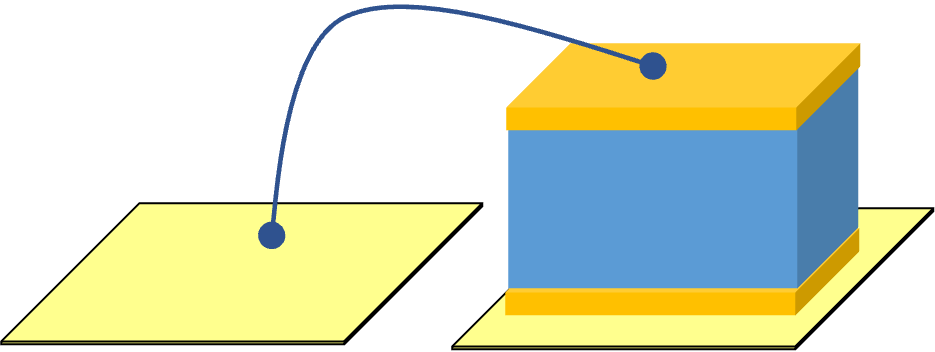

For wire bonding or epoxy die attach to the high purity gold connector pads. The Class I and Class II dielectric high temperature application up to 300°C.
Selection Guide
| Size | Length
inch
(mm) | Width
inch
(mm) | Thickness
inch
(mm) | working
Volt WVDC
(volt) | Capacitance
(pF) | 300°C | 250°C |
|---|
NPO
cap (pF) | X7R
cap (pF) |
|---|
3030
| 0.030±0.003
(0.762±0.076) | 0.030±0.003
(0.762±0.076) | 0.025±0.005
(0.559±0.102) | 100 | Max | 50 | 1000 |
| 50 | Max | 120
| 2700
|
| 25 | Max | 360
| 6800
|
| 16 | Max | 470
| 9,100
|
4040
| 0.040±0.005
(1.016±0.127) | 0.040±0.005
(1.016±0.127) | 0.035±0.005
(.635±0.127) | 100 | Max | 220 | 4,700 |
| 50 | Max | 360
| 6,800
|
| 25 | Max | 910
| 18,000
|
| 16 | Max | 1,200
| 27,000
|
| 4080 | 0.040±0.005
(1.016±0.127) | 0.080±0.005
(2.032±0.127) | 0.035±0.005
(.635±0.127) | 100 | Max | 390 | 8,200 |
| 50 | Max | 620
| 13,000
|
| 25 | Max | 1,200
| 27,000
|
| 16 | Max | 3,300
| 62,000
|
| 5080 | 0.050±0.005
(1.270±0.127) | 0.080±0.005
(2.032±0.127) | 0.035±0.005
(.635±0.127) | 100 | Max | 510 | 10,000 |
| 50 | Max | 750
| 15,000
|
| 25 | Max | 1,500
| 33,000
|
| 16 | Max | 3,900
| 75,000
|
Example Part Number
| Format | Voltage Code | Case Size | Dielectric Type | Capacitance | Cap Tolerance | Termination | Packaging |
|---|
| VH | 1H | 3030 | X | 272 | M | G | W |
| Voltage Code |
|---|
| 1C | 16VDC |
| 1E | 25VDC |
| 1H | 50VDC |
| 2A | 100VDC |
| Capacitance Code |
|---|
| 1R0 | 1.0pF |
| 2R7 | 2.7pF |
| 270 | 27pF |
| 271 | 270pF |
| 102 | 1000pF |
| Capacitance Tolerance |
|---|
J (NPO Only)
| ±5% |
| K (NPO Only | ±10% |
| M | ±20% |
| Z | +80-20% |
| P | +100-0% |
| Dielectric Type |
|---|
| N | NPO
|
| X | X7R |
Test Condition
Electrical
Specifications | Dielectric Type |
|---|
| NPO | X7R |
|---|
Operating
Temperature Range | -55°C to 125°C | -55°C to 125°C |
Temperature
Coefficient | ±30ppm/°C | ±15% |
| Capacitance | 1MHz @ 1VAC RMS | 1MHz @ 1VAC RMS |
Dissipation Factor,
Max | 0.15% | Max 5% |
Insulation Resistance
@25°C | 100GΩ | 100GΩ |
Insulation Resistance
@125°C | 10GΩ | 10GΩ |
Dielectric
Withstanding Voltage | 250%WVDC | 250%WVDC |
| Mechanical Specifications |
|---|
Wire Bond Strength, min
(0.001″ diameter au wire)
| 3 grams | 3 grams | 3 grams | 3 grams |
| Shear Strength, min | Size dependent | Size dependent | Size dependent | Size dependent |
| 99.9% Au Termination, min | 100μin | 100μin | 100μin | 100μin |

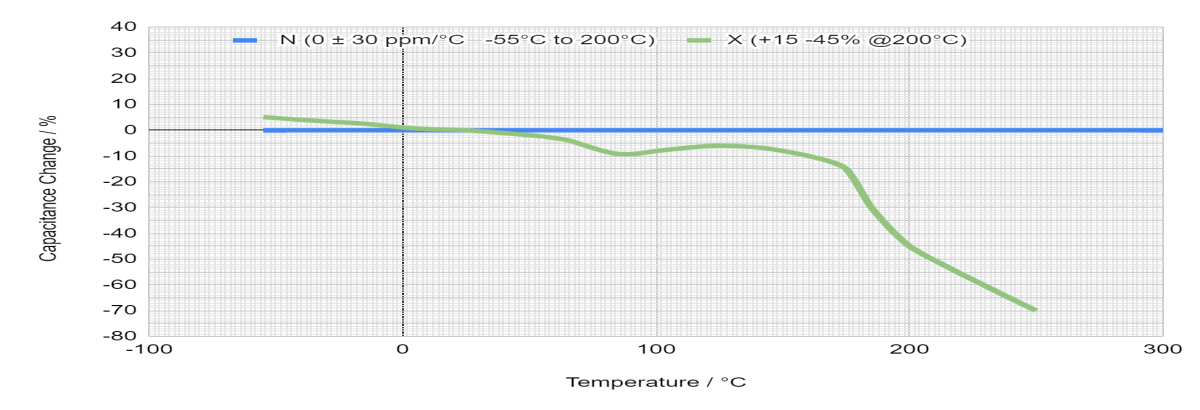

Dielectric Temperature Coefficients
