Eulex Vertical Layer Capacitor

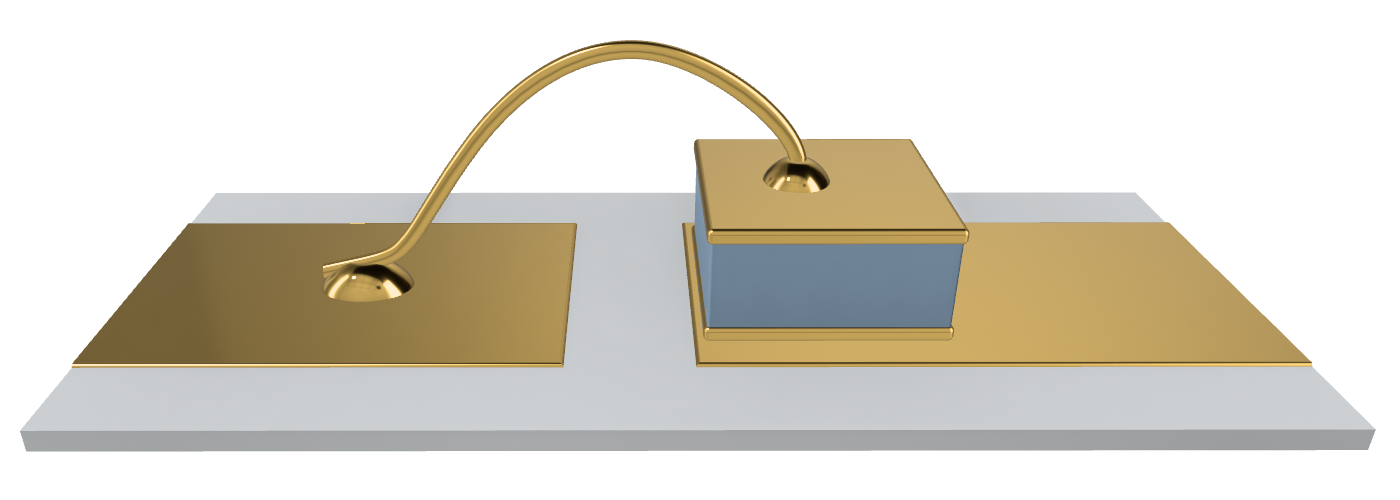

MLCC type capacitor with high purity gold conductors for wire bonding, solder, or epoxy die attach. Class II dielectric in a range of sizes suitable for mounting in IC packages or on strip-line.
Applications
Specific applications include DC blocking, tuning, RF Bypass, filtering, microwave applications.
Advantage
- High Frequency response
- Class II
- RoHS compliant
- Small Size from 1010 and up
Selection Guide
| Case Size | Length
inch (mm) | Width inch (mm) | Thickness
inch (mm) | Capacitance pF (Max) |
|---|
| 6.3 Volt | 16 Volt | 25 Volt | 50 Volt | 100 Volt |
|---|
| 1010 | 0.010±0.004
(0.254±0.102) | 0.010±0.004
(0.254±0.102) | 0.008±0.003
(0.203±0.076) | 1,000** | N/A | N/A | N/A | N/A |
| 1515 | 0.015±0.004
(0.381±0.102) | 0.015 ±0.004
(0.381±0.102)
| 0.012±0.004
(0.305±0.102) | 10,000+ | 1,000** | N/A | N/A | N/A |
| 2020 | 0.020±0.004
(0.508±0.102)
| 0.020±0.004
(0.508±0.102)
| 0.014±0.004
(0.355±0.102)
| 100,000** | 8,200** | 4,700** | 2,200 | 1,000 |
3030
| 0.030±0.005
(0.762±0.127) | 0.030±0.005
(0.762±0.127) | 0.020±0.004
(0.508±0.102) | N/A | 22,000** | 22,000** | 10,000 | 4,700 |
4040
| 0.040±0.005
(1.016±0.127) | 0.040±0.005
(1.016±0.127) | 0.025±0.005
(0.635±0.127) | N/A | 100,000** | 47,000** | 22,000 | 10,000 |
| 4080* | 0.040±0.005
(1.016±0.127) | 0.080±0.005
(2.032±0.127) | 0.025±0.005
(0.635±0.127) | N/A | 100,000 | 68,000 | 27,000 | 15,000 |
| 5080* | 0.050±0.005
(1.270±0.127) | 0.080±0.005
(2.032±0.127) | 0.025±0.005
(.635±0.127) | N/A | 220,000 | 180,000 | 68,000 | 27,000 |
| *Coming Soon, **Currently X5R only, + 10Volt capable (WVDC) |
Example Part Number
| Format | Voltage Code | Case Size | Dielectric Type | Capacitance | Cap Tolerance | Termination | Packaging |
|---|
| XV | G | 4040 | X | 102 | M | G | W |
| Voltage Code |
|---|
| A | 6.3VDC |
| C | 10VDC |
| E | 16VDC |
| L | 25VDC |
| G | 50VDC |
| B | 100VDC |
| Capacitance Code |
|---|
| 270 | 27pF |
| 271 | 270pF |
| 102 | 1,000pF |
| 223 | 22,000pF |
| 224 | 220,000pF |
| Capacitance Tolerance |
|---|
| M | ±20% |
| Dielectric Type |
|---|
| D | X5R |
| X | X7R |
Test Condition
Electrical
Specifications | Dielectric Type |
|---|
| X7R | X5R |
|---|
Operating
Temperature Range | -55°C to 125°C | -55°C to +85°C |
Temperature
Coefficient | ±15% | ±15% |
| Capacitance | 1MHz @ 1VAC RMS | 1MHz @ 1VAC RMS |
Dissipation Factor,
Max | 5% | 10% |
Insulation Resistance
@25°C | 1000MO µF
| 500MO µF
|
Dielectric
Withstanding Voltage | 250% WVDC | 250% WVDC |
| Mechanical Specifications |
|---|
Wire Bond Strength, min
(0.001? diameter au wire)
| 3 grams | 3 grams |
| Shear Strength, min | Size dependent | Size dependent |

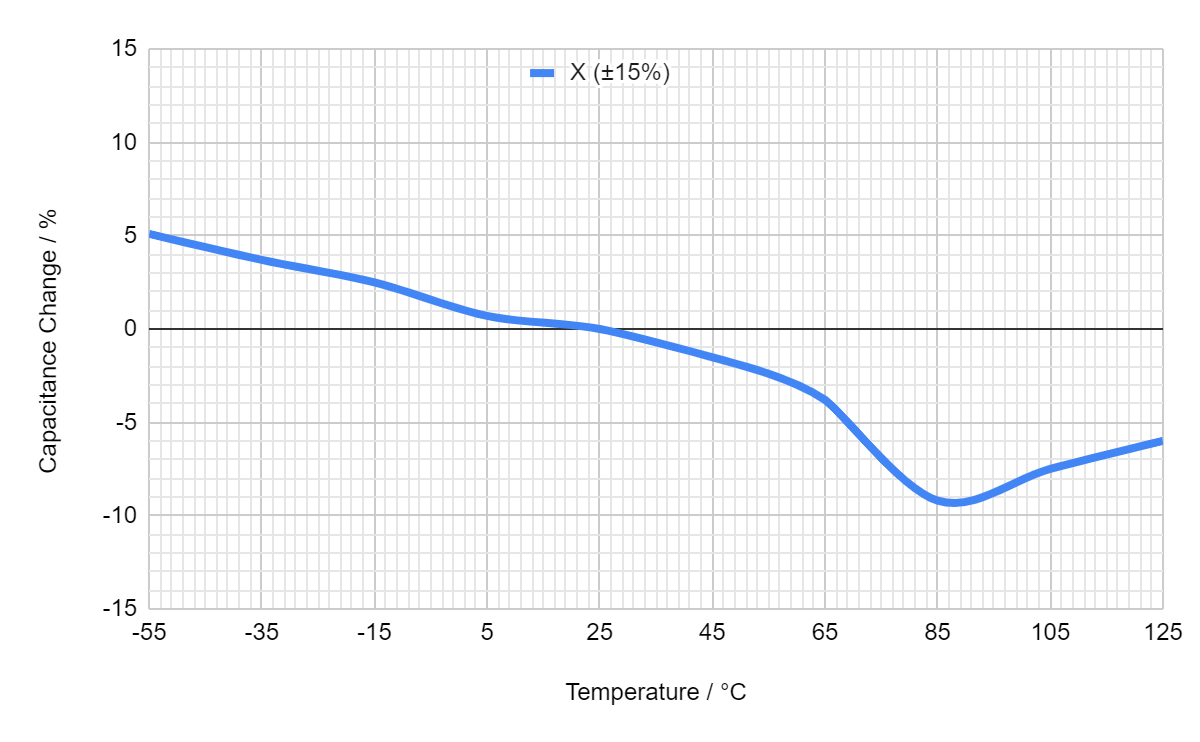

Dielectric Temperature Coefficients
